System Design: What Is 3-Tier Architecture?

3-tier architecture is one of the most widely used design concepts in modern system design.
It divides an application into three distinct layers — presentation, application, and data — enabling better scalability, maintainability, and flexibility.

In this post, we’ll explore how 3-tier architecture differs from the simpler 2-tier model, and why most modern systems adopt it.

What Is 2-Tier Architecture?

A 2-tier architecture consists of:

1. Client Tier (Presentation Layer) – The user interface or front end (e.g., desktop app or web client).
2. Database Tier (Data Layer) – The backend database that stores and manages data.

In this model, the client directly communicates with the database — often embedding business logic into the client code.

Example

A simple desktop inventory application where the client connects directly to a MySQL database.

Limitations

• Poor scalability — each client opens a database connection.
• Tight coupling between UI and data logic.
• Hard to update or maintain business rules centrally.

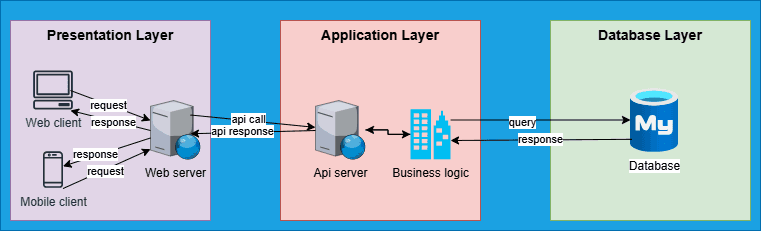

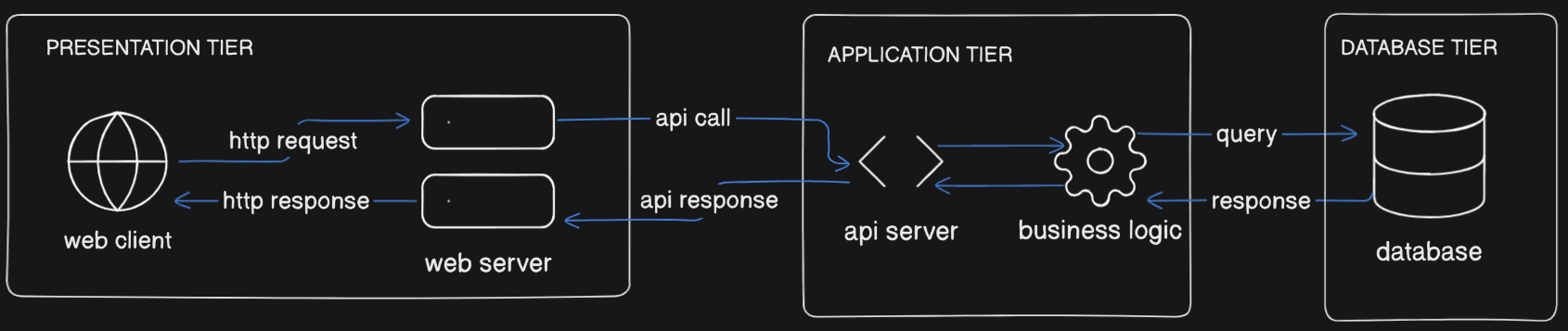

What Is 3-Tier Architecture?

A 3-tier architecture introduces a middle layer between the client and the database — separating concerns more effectively.

1. Presentation Layer (UI):
   The user-facing interface — such as a web or mobile app.

2. Application Layer (Business Logic / Middleware):
   Handles requests, applies rules, validates data, and communicates with the database.

3. Data Layer (Database):
   Stores and retrieves data persistently.

Example

An e-commerce system where:

• The frontend (React/Angular) sends a request,
• The application layer (Node.js, Django, Spring Boot) processes it,
• The database (MySQL, PostgreSQL, MongoDB) stores product and user information.

Key Benefits of 3-Tier Architecture

Scalability — Each layer can scale independently (e.g., multiple web servers).
Maintainability — Centralized business logic simplifies updates.
Security — The database is hidden behind the application layer.
Flexibility — Swap or upgrade components without rewriting the system.

Real-World Analogy: The Restaurant Model

Think of a restaurant:

• The customer represents the presentation layer.
• The waiter and kitchen represent the application layer, processing requests.
• The storage/pantry is the data layer that provides ingredients.

The customer never interacts directly with the pantry — just as a user never talks directly to the database in a 3-tier architecture.

Comparison Table

Conclusion

The 3-tier architecture is a cornerstone of modern software design.
By separating responsibilities across three logical layers, it allows systems to evolve, scale, and remain maintainable over time.

Whether you’re designing enterprise software, web apps, or distributed microservices, mastering this foundational concept is essential for building reliable systems.
