Forward Proxy and Reverse Proxy: The Smart Intermediaries of Modern Network Design

When you access a website, send an API call, or connect to a cloud application, your request rarely travels directly from client to server.
Instead, it often passes through one or more intermediaries — intelligent components known as Proxies and Reverse Proxies.

These components are the traffic managers of the internet, improving security, performance, and scalability while hiding complexity from users.

Let’s explore how they work, where they fit into system design, and why they are indispensable in modern architectures.

What Is a Proxy Server?

A Proxy Server acts as a gateway between a client and the internet.
It forwards requests from the client to external servers and returns the responses back to the client — effectively serving as an intermediary.

Example:

You → Proxy → Target Server

It can hide your identity, filter requests, cache content, or log traffic — depending on its configuration.

How a Proxy Works

Client → Proxy Server → Internet → Response → Proxy → Client

The client sends a request to the proxy instead of directly to the server.
The proxy forwards that request on behalf of the client.
The server sees the request coming from the proxy, not the client.
The proxy receives the response and passes it back to the client.

Why Use a Proxy?

Benefit	                 Description
Privacy	                 Masks client’s IP address from the server.
Security	             Filters malicious traffic, blocks restricted content.
Caching	                 Stores frequently accessed resources locally for speed.
Access Control	         Enforces corporate or network policies.
Logging & Monitoring	 Tracks network usage for analytics and compliance.

Types of Proxy Servers

Type	                Description	                                                           Use Case
Forward Proxy	        Represents the client when communicating with external servers.	       Used in corporate networks or secure browsing.
Transparent Proxy	    Intercepts requests without client configuration.	                   Used by ISPs for caching or filtering.
Anonymous Proxy	        Hides client identity while forwarding requests.	                   Privacy-focused networks.
High Anonymity Proxy	Completely hides identity, changing headers dynamically.	           Used in high-security or testing environments.

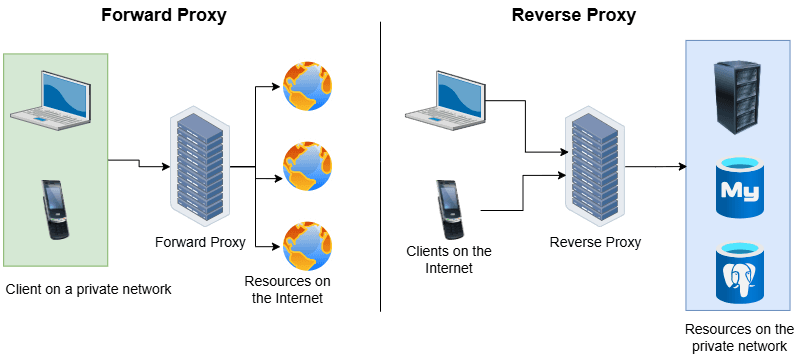

Reverse Proxy — The Server’s Bodyguard

A Reverse Proxy is the opposite of a forward proxy.

It sits in front of servers, accepting requests from clients, and then forwards them internally to one or more backend servers.

In other words:

Forward Proxy = acts for the client
Reverse Proxy = acts for the server

Example:

Client → Reverse Proxy → Backend Servers

The client never communicates directly with the backend — all requests go through the reverse proxy.

How a Reverse Proxy Works

Client → [ Reverse Proxy ] → App Server 1
                          ↳ App Server 2
                          ↳ App Server 3

The reverse proxy:

Receives incoming requests (e.g., to www.example.com).
Routes them to one of several backend servers.
Aggregates or transforms responses.
Sends results back to the client — appearing as if from a single endpoint.

Key Benefits of a Reverse Proxy

Function	                Description
Load Balancing	            Distributes traffic across multiple backend servers.
Caching	                    Caches static responses to reduce backend load.
SSL Termination	            Handles HTTPS encryption/decryption to offload backend.
Security	                Hides backend IPs, prevents direct exposure to attacks.
Compression	                Optimizes data transfer for faster performance.
Centralized Logging	        Aggregates access and error logs for observability.

Common Reverse Proxy Implementations

Tool	            Description	                                                            Typical Use
Nginx	            Lightweight, high-performance reverse proxy and load balancer.	        Web servers, APIs
HAProxy	            Advanced TCP/HTTP load balancer with health checks.	                    Enterprise environments
Apache HTTP Server	Reverse proxy module (mod_proxy).	                                    Legacy web architectures
Envoy Proxy	        Modern proxy used in service meshes (e.g., Istio).	                    Kubernetes / Microservices
Traefik	            Dynamic reverse proxy with auto-discovery in containers.	            Docker / Kubernetes

Proxy vs Reverse Proxy — Key Differences

Aspect	                Proxy	                                Reverse Proxy
Represents	            Client	                                Server
Used by	                Clients or networks	                    Servers or applications
Purpose	                Privacy, filtering, caching	            Load balancing, routing, security
Example	                Corporate proxy server	                Nginx reverse proxy in front of APIs
Visibility	            Server doesn’t see the real client	    Client doesn’t see the real backend

Real-World Example: Nginx as Reverse Proxy

Architecture:

Client → Nginx → [ Node.js API | Python API | PHP API ]

Nginx receives the request at port 80 or 443.
It checks routing rules.
Forwards the request to appropriate backend service based on path or domain.
Collects responses and sends them to the client.

Benefits:

Single public endpoint for all services.
SSL termination handled once at Nginx.
Backends remain secure and scalable.

Proxy in Cloud & Microservices Environments

In cloud-native and microservice architectures, proxies are critical components.

Use Case	                    Description
API Gateway (Reverse Proxy)	    Acts as the entry point for microservices.
Service Mesh Sidecars	        Proxies manage inter-service traffic (Envoy in Istio).
Edge Proxies (CDN)	            Handle caching and SSL at global edge nodes.
Forward Proxies	                Used for outbound security or compliance traffic control.

Example (Service Mesh):

Service A → Envoy Proxy → Network → Envoy Proxy → Service B

Each service communicates through proxies for observability, retries, and rate limiting.

Security and Performance Enhancements

1. Rate Limiting & DDoS Mitigation: Reverse proxies can throttle excessive traffic or drop malicious requests.
1. Web Application Firewall (WAF): Many reverse proxies (like Nginx + ModSecurity) inspect requests for SQL injection, XSS, or bot traffic.
1. Caching Layer: By serving frequently requested content directly, reverse proxies reduce server load dramatically.
1. Gzip Compression: Minimizes payload size, improving performance for slow networks.

Example: Multi-Tier Proxy Architecture in System Design

User
 │
 ▼
[ CDN / Edge Proxy ]
 │
 ▼
[ Reverse Proxy / API Gateway ]
 │
 ▼
[ Application Servers ]
 │
 ▼
[ Database Layer ]

Each layer adds resilience and optimization:

CDN Proxy handles global caching.
Reverse Proxy manages load balancing and SSL.
Internal Service Proxies handle service-to-service communication.

Best Practices

Always use TLS termination at the proxy layer for security.
Implement health checks for backend servers.
Enable response caching for static resources.
Use rate limiting and firewall rules to prevent abuse.
Monitor proxy metrics (latency, throughput, errors) via Prometheus or Grafana.
For microservices, integrate service mesh proxies (Envoy, Linkerd) for fine-grained control.

Conclusion

Proxies and Reverse Proxies are the invisible powerhouses of network architecture. They sit between systems, silently optimizing every connection — securing, balancing, caching, and controlling how data flows across distributed environments.

From corporate networks to Kubernetes clusters, these intermediaries are the intelligent traffic directors that make large-scale systems reliable, fast, and secure.
