How 3-Tier Architecture Evolves into Microservices and Cloud-Native Design

The 3-tier architecture laid the foundation for scalable and maintainable software systems.
But as businesses demanded faster deployments, global scalability, and high availability, a new paradigm emerged — microservices and cloud-native architecture.

This post explores how the classic 3-tier architecture evolved into microservices-based and cloud-native designs, what challenges it solved, and how this shift reshaped modern software engineering.

Recap: The 3-Tier Architecture

A quick refresher — 3-tier systems divide applications into:

1. Presentation Layer → The UI/UX that users interact with (e.g., React, Angular, Flutter).
2. Application Layer → Business logic and service handling (e.g., Node.js, Django, Spring Boot).
3. Data Layer → Database or persistent storage (e.g., MySQL, PostgreSQL, MongoDB).

This separation made systems modular and easier to maintain — but as demand and traffic grew, teams hit certain limitations.

The Limitations of Traditional 3-Tier Architecture

While the 3-tier design improved organization and reusability, it came with trade-offs:

• Monolithic deployment — All layers tightly packaged; scaling one component means scaling the entire app.
• Complex updates — A small change in one service required redeploying the whole system.
• Limited fault isolation — One bug or crash could bring down the entire application.
• Slow innovation — Large teams struggled to iterate quickly on independent features.

These pain points became the driving force behind the move to microservices.

Step 1: From Monolithic 3-Tier to Service-Oriented Thinking

Before microservices, developers began modularizing 3-tier apps into service-based components — splitting large business logic into smaller services or modules.

Example:

• The application layer that once contained all logic now became multiple services:
  • user-service
  • order-service
  • payment-service

They might still share a database, but each handled its own domain logic.
This was the transitional phase toward microservices.

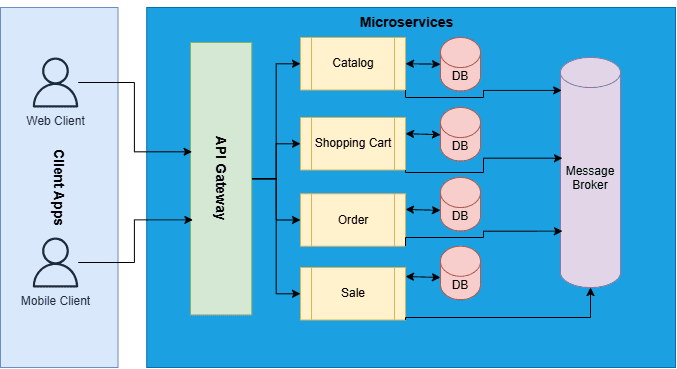

Step 2: Microservices Architecture Emerges

In a microservices architecture, each business function becomes an independent, self-contained service that can be deployed, scaled, and updated separately.

Key Characteristics:

• Each service has its own codebase and database.
• Services communicate via lightweight APIs (often REST, gRPC, or message queues like Kafka).
• Continuous delivery pipelines automate building, testing, and deploying each service.
• Teams can use different tech stacks per service (polyglot architecture).

Example

Instead of one large “Application Layer,” a retail system might include:

• auth-service (manages authentication and tokens)
• cart-service (handles shopping cart logic)
• inventory-service (tracks stock)
• notification-service (sends emails/SMS)

Each service runs independently — typically in its own container.

Step 3: Cloud-Native Architecture Takes It Further

Microservices architecture paved the way for cloud-native design — a set of principles for building scalable, resilient applications specifically for the cloud.

What Makes an App “Cloud-Native”?

• Containerized (e.g., Docker)
• Dynamically orchestrated (e.g., Kubernetes, ECS)
• Observable and resilient (e.g., Prometheus, Grafana, Loki)
• Automated deployment pipelines (CI/CD)
• Elastic scaling — spin up or shut down containers as demand changes
• Decentralized data management — each service manages its own data store

Essentially, cloud-native is microservices + automation + resilience at cloud scale.

Architecture Evolution Overview

Advantages of the Evolution

Independent scaling — Scale only the service that needs more power.
Faster deployments — CI/CD pipelines enable continuous delivery.
Fault isolation — One service failure doesn’t crash the whole app.
Technology freedom — Use different languages or databases per service.
Cloud elasticity — Auto-scale and self-heal with orchestration platforms.

Challenges Along the Way

• Increased complexity — Networking, observability, and debugging are harder.
• DevOps maturity required — Teams need CI/CD, logging, monitoring, and deployment automation.
• Operational cost — Running distributed services demands robust infrastructure and monitoring.

Real-World Example: Evolving an E-Commerce Platform

Phase 1 (3-Tier):
Frontend → Backend (Node.js) → MySQL
Single monolith app handling users, orders, and payments.

Phase 2 (Microservices):

• auth-service → Manages login/signup
• orders-service → Handles transactions
• payments-service → Integrates with payment gateways
• analytics-service → Processes sales data

All deployed via Docker containers.

Phase 3 (Cloud-Native):
All microservices orchestrated by Kubernetes, monitored by Prometheus + Grafana, with GitHub Actions CI/CD automating deployment — fully cloud-native and self-healing.

Conclusion

The evolution from 3-tier to microservices and cloud-native architecture represents a natural response to modern scalability and agility needs.

• 3-tier gave us structure.
• Microservices gave us independence.
• Cloud-native gave us resilience and automation.

Together, they form the backbone of today’s large-scale distributed systems — from Netflix to Amazon to modern enterprise software.
