DNS: The Internet’s Address Book and the Key to Scalable System Design

Authors
DNS-Architecture

DNS: The Internet’s Address Book and the Key to Scalable System Design

Every time you visit a website, send an email, or call an API, your device first asks a simple question:

“Where can I find this domain?”

The answer comes from DNS — the Domain Name System, often called the Internet’s address book.
It translates human-friendly names like www.example.com into the numerical IP addresses that computers understand.

Without DNS, the internet as we know it would be unusable.
Let’s break down how DNS works, why it’s essential for scalability, and how it shapes modern cloud infrastructure.

What Is DNS?

DNS (Domain Name System) is a distributed, hierarchical system that maps domain names to IP addresses.
It allows users to access services by names (like google.com) instead of memorizing numbers (142.250.72.14).

Think of DNS as the telephone directory of the internet — it matches names to numbers behind the scenes.

Example:

You type: www.amazon.com

DNS resolves: 176.32.103.205 Your browser connects: 176.32.103.205 → Amazon’s server

Why DNS Exists

Early internet systems required users to type IP addresses directly.
As the web grew, this became impractical — so DNS was invented in the 1980s to make the web human-friendly and scalable.

Today, it handles billions of lookups every second, powering every request on the internet.

How DNS Works — Step by Step

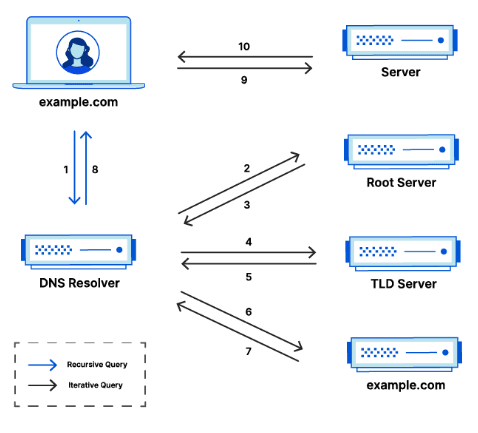

User → Resolver → Root DNS → TLD Server → Authoritative DNS → Response
  • 1 DNS Resolver (Recursive Resolver)

Your device or ISP sends the initial query to a resolver. Example: Google DNS (8.8.8.8), Cloudflare (1.1.1.1)

  • 2 Root DNS Servers

These are global servers that direct queries to Top-Level Domain (TLD) servers (.com, .org, .net, etc.).

  • 3 TLD DNS Servers

They store information about domain extensions and direct queries to the correct authoritative name servers.

  • 4 Authoritative DNS Servers

These servers hold the actual DNS records for a domain (like A, CNAME, MX, etc.).

  • 5 Response

The IP address is returned to the user’s resolver, cached, and the browser connects to the destination server.

DNS Query Flow Example

1. Browser: "Where is www.example.com?"
2. Resolver (ISP) → Root Server → TLD Server → Authoritative Server
3. Authoritative Server → "www.example.com = 93.184.216.34"
4. Resolver caches the result
5. Browser connects to 93.184.216.34

Each step happens in milliseconds, yet this chain powers every web request globally.

Key DNS Record Types

Record Type	        Purpose	                        Example
A Record	        Maps domain → IPv4 address	    example.com → 93.184.216.34
AAAA Record	        Maps domain → IPv6 address	    example.com → 2606:2800:220:1:248:1893:25c8:1946
CNAME	            Alias name to another domain	www → example.com
MX	                Mail exchange server	        mail.example.com
TXT	                Misc data (SPF, verification)	v=spf1 include:_spf.google.com
NS	                Authoritative name servers	    ns1.exampledns.com
SRV	                Defines ports and services	    _sip._tcp.example.com

Each record plays a unique role in routing, authentication, and service discovery.

DNS Caching: Speeding Things Up

To avoid querying DNS servers repeatedly, responses are cached.

Cache Type	        Location	                    Example
Browser Cache	    Inside your browser	            Fastest access
OS Cache	        Local resolver cache	        ipconfig /displaydns
ISP Cache	        ISP-level resolver	            Shared by users
CDN Cache	        Edge nodes cache DNS records	Used by Cloudflare, Akamai

The TTL (Time-To-Live) defines how long a record stays cached — typically 300s to 86,400s.

DNS in System Design

DNS isn’t just about websites — it’s integral to service discovery, routing, failover, and scalability.

Use Case Description Load Balancing Route traffic between multiple servers (Round Robin DNS). Geo-DNS Route users to the nearest data center based on location. Failover DNS Switch to backup servers when primary fails. Service Discovery Used in Kubernetes, Consul, and microservices for locating internal services.

Example:

api.example.com
├── 192.168.1.10 (US-East)
├── 192.168.2.11 (EU-West)
└── 192.168.3.12 (AP-South)

Geo-DNS ensures each user connects to the nearest server — improving latency and reliability.

Cloud DNS: Modern Implementations

Provider Service Features AWS Route 53 Health checks, latency-based routing Azure Azure DNS Integrated with Azure services Google Cloud Cloud DNS Scalable, managed DNS zones Cloudflare Cloudflare DNS High performance, DDoS protection

Example:

In AWS Route 53, you can:

  • Use failover routing between EC2 instances.

  • Add weighted records to split traffic by percentage.

  • Configure health checks to remove unhealthy targets automatically.

DNS and Content Delivery Networks (CDNs)

CDNs like Cloudflare, Akamai, and Fastly rely on DNS to redirect users to edge servers. When a request for example.com arrives, DNS directs it to the nearest cached server, improving speed and reducing origin load.

Security in DNS

DNS, being critical infrastructure, must be secured against attacks like DNS Spoofing or Cache Poisoning.

Threat Description Mitigation DNS Spoofing Fake DNS responses redirect traffic Use DNSSEC (Digital Signatures) Amplification Attack DNS servers abused in DDoS Rate limiting and response validation Cache Poisoning Injects false entries into cache Secure resolvers and short TTLs

DNS + DevOps: Dynamic Infrastructure

In cloud-native environments:

DNS updates occur automatically during scaling.

Ingress controllers in Kubernetes rely on DNS-based routing.

Service Meshes (Istio, Linkerd) use DNS for microservice discovery.

Example:

Frontend Service → DNS lookup → Backend Service IP (discovered dynamically)

When new pods or containers spin up, DNS automatically registers them — enabling self-healing and elastic scaling.

Best Practices for DNS in System Design

  • Use short TTLs (60s–300s) for dynamic infrastructure.
  • Implement DNS redundancy with multiple providers.
  • Enable DNSSEC for authenticity.
  • Use monitoring (like Pingdom, Route 53 health checks).
  • For internal systems, use private DNS zones.
  • Cache results locally for performance.

Conclusion

DNS may seem simple, but it’s the invisible backbone of every internet request. From resolving domain names to balancing global traffic, DNS enables scalability, resilience, and high availability in distributed systems.

In system design, DNS isn’t just “lookup service” — it’s the first layer of architecture that ensures every packet finds its way home.
