IP Address: Understanding Digital Identity in Networked Systems

Every device connected to a network — from your laptop to a Kubernetes pod — needs an identity to communicate.
That identity is called an IP Address.

In the same way your home address ensures mail reaches you, an IP address ensures digital packets reach the right destination across the internet or within private networks.

What Is an IP Address?

An Internet Protocol (IP) Address is a unique numerical identifier assigned to every device on a network.
It enables devices to locate, communicate, and exchange data using the Internet Protocol — the foundation of all networking.

Example

• IPv4: 192.168.1.10
• IPv6: 2001:0db8:85a3:0000:0000:8a2e:0370:7334

Just like a postal address includes house number and city,
an IP address tells routers where to deliver packets in a digital world.

How It Works

When a device sends data over a network:

1. Data is broken into packets.
2. Each packet includes source IP and destination IP.
3. Routers read the destination IP to forward the packet toward its target.
4. The target device receives and processes the packet.

This continuous exchange of packets forms the backbone of all internet communication.

IPv4 vs IPv6

Why IPv6?

IPv4 ran out of available addresses due to the internet’s exponential growth.

IPv6 solves this with a near-infinite address pool, essential for IoT, 5G, and cloud-native infrastructures.

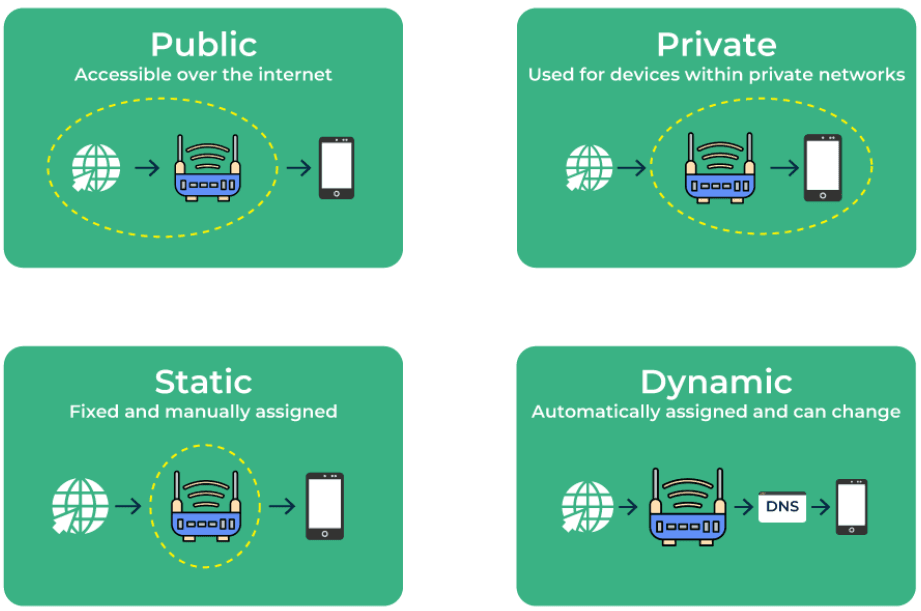

Types of IP Addresses

How IP Addresses Are Assigned

1. Static Allocation

Manually configured; used for servers and infrastructure components.

Example:

sudo ifconfig eth0 192.168.1.50 netmask 255.255.255.0

2. Dynamic Allocation (DHCP)

The DHCP server assigns an available IP dynamically.

Example: Your Wi-Fi router gives your phone an IP like 192.168.1.101.

3. Cloud-Based Allocation

In AWS, Azure, or GCP:

Each VM or container gets a private internal IP.

Elastic / Public IPs are assigned for external communication.

Subnetting: Dividing Networks Efficiently

Subnetting splits a large network into smaller, manageable parts (subnets).

Example:

Network: 192.168.1.0/24
Subnet Mask: 255.255.255.0
Usable IPs: 192.168.1.1 – 192.168.1.254

Benefits:

Reduces congestion.

Improves security and organization.

Enables network segmentation for multi-tenant or cloud environments.

IP in Modern System Design

In microservices and containerized systems, IP management is critical.

Environment	        Role of IP
Kubernetes Pods     Each pod gets a unique internal IP for service discovery.
Load Balancers	    Expose single public IP mapped to multiple backend nodes.
NAT Gateways	    Translate internal (private) IPs to public addresses.
Proxies & Firewalls	Filter traffic by IP ranges and routes.

Example

User (Public IP) → Nginx (Reverse Proxy IP) → Backend Service (Private IP)

CIDR Notation: Modern IP Allocation

CIDR (Classless Inter-Domain Routing) replaces the old class-based system for more efficient address use.

Example:

10.0.0.0/16  →  Network with 65,536 IPs
10.0.1.0/24  →  Subnet with 256 IPs

In cloud design:

/24 = 256 IPs → small subnet (per microservice cluster)

/16 = 65K IPs → large subnet (for multi-AZ environments)

Real-World Example: AWS IP Management

AWS assigns:

Private IPs inside VPCs (10.x.x.x ranges)

Public IPs / Elastic IPs for external communication

NAT Gateways for outbound internet access from private subnets

Architecture Example:

Internet
   │
 ┌─▼────────────────────┐
 │  Public Subnet (Web) │ →  Elastic IPs
 └─▲────────────────────┘
   │
 ┌─▼────────────────────┐
 │ Private Subnet (DB)  │ →  Private IPs only
 └──────────────────────┘

This separation ensures both security and network control.

IP and DNS — The Perfect Pair

DNS (Domain Name System) translates domain names into IP addresses. Example:

www.example.com → 93.184.216.34

Without DNS, you’d have to remember numeric IPs for every website — not ideal.

Best Practices for IP Management

• Use private IP ranges for internal systems.
• Leverage DHCP reservations for critical servers.
• Plan CIDR ranges before creating VPCs or on-prem networks.
• Use network ACLs / firewalls to restrict IP access.
• Monitor with tools like ipset, netstat, or Grafana Loki logs.

Conclusion

An IP address is the digital identity that enables every packet of data to find its way across the internet or private networks. From local devices to cloud microservices, IP management forms the invisible nervous system of every system design.

Without IPs, there’s no routing, no communication, and no Internet.

Understanding them is the first step toward mastering distributed architecture.
